125cc Cylinder Kit, 52.4 13mm, Chinese ATV & Dirt Bikes, Lifan Loncin LF125 YX
4.0 (79 items)
Limited Time Sale$20.98 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 1459867 | Release Date | 2025/07/08 | List Price | $38.97 | Model Number | 1459867 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
ITEM DESCRIPTION: Cylinder Kit for Lifan 125cc engines with 52.4mm bore 55mm stroke & 13mm wrist pin (see info and specs below).

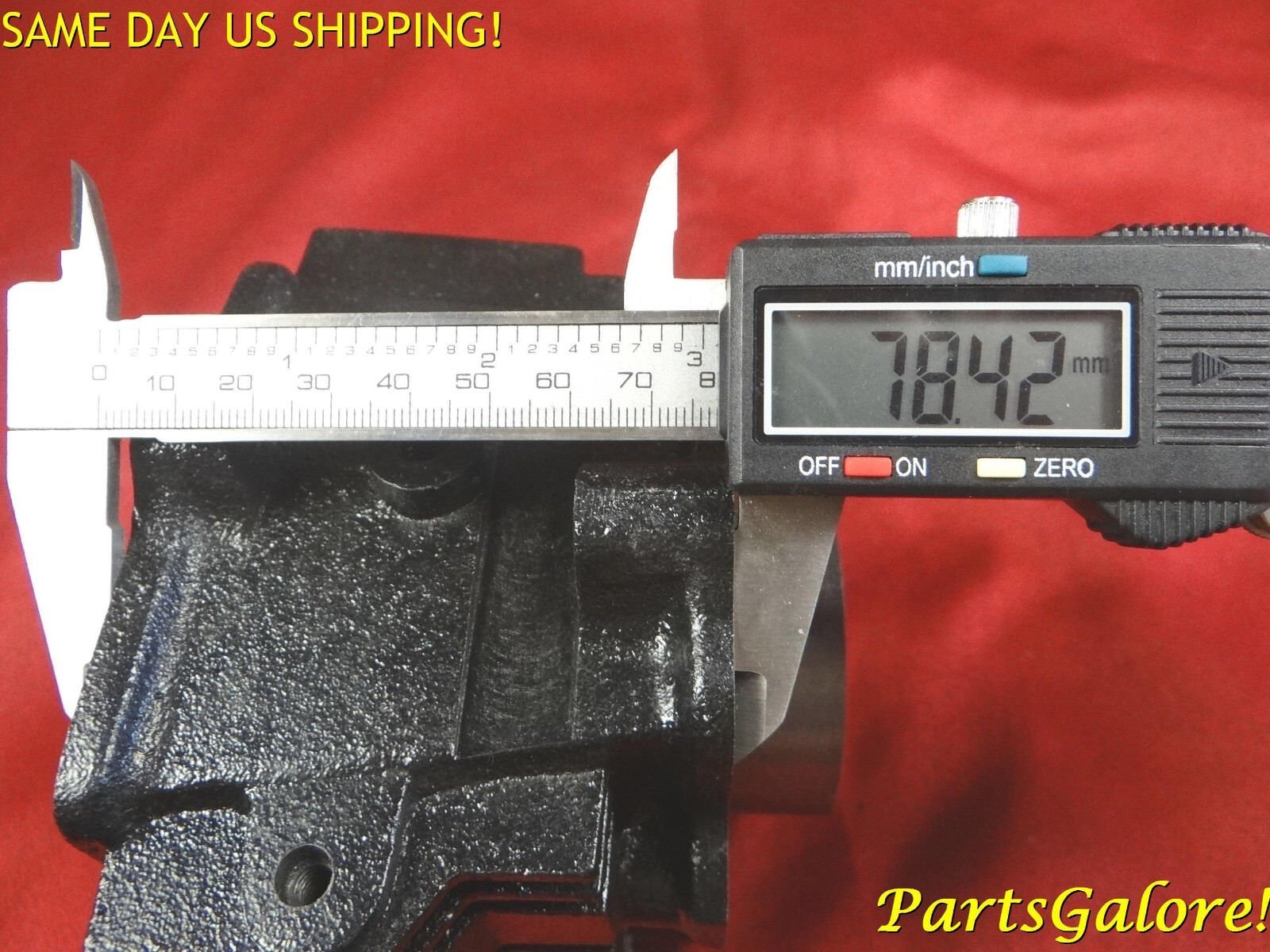

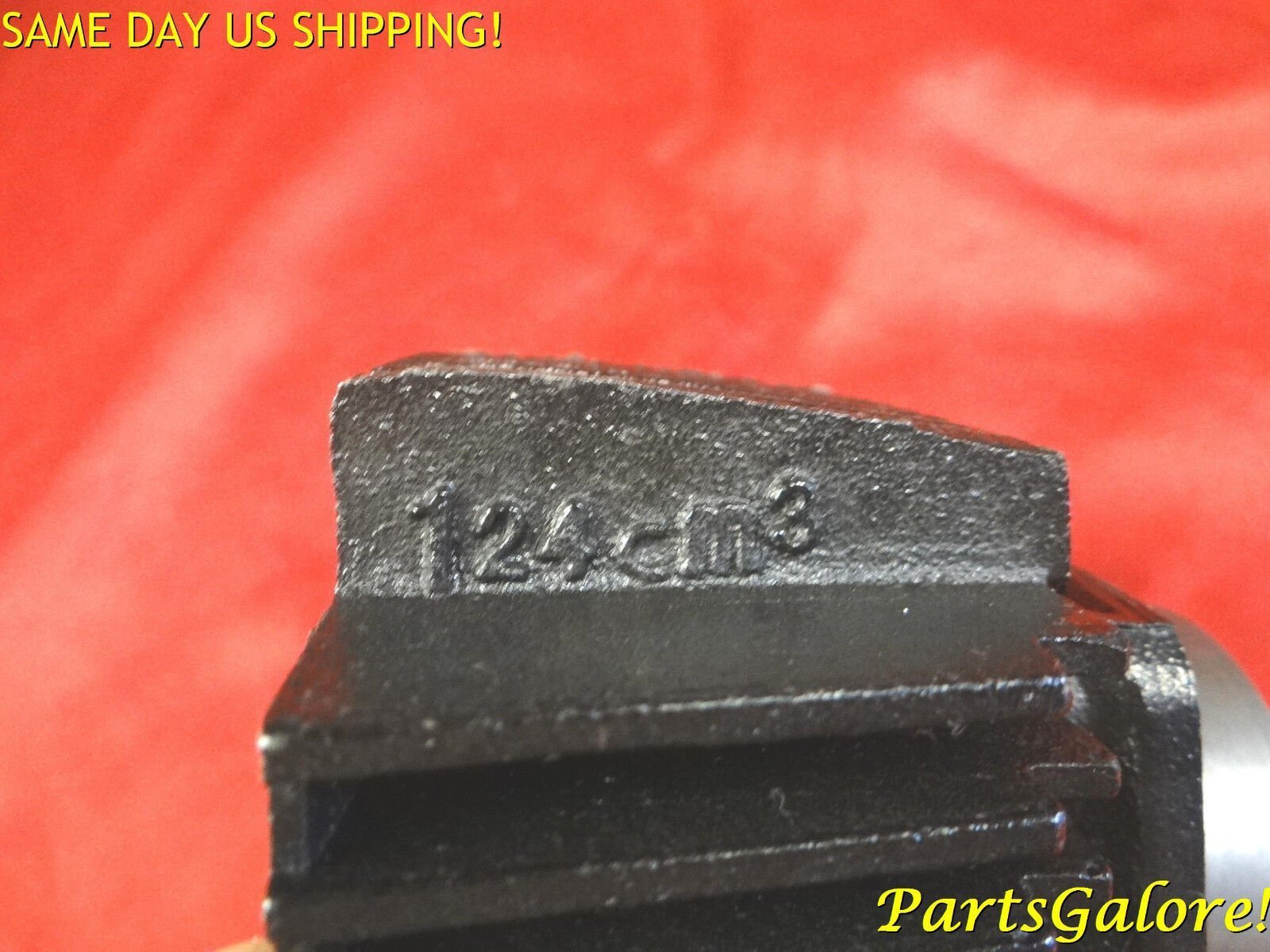

NOTE: This engine is different than a Honda Clone but looks very similar. It has a cast iron cylinder with 52.4mm bore like 110cc engines but it has a longer 55mm stroke making it 125cc. You must verify it says 124cm3 on one of the fins (if yours says 107cm3 this is not the one for you). Also verify your cylinder is 78.5mm tall (this one is taller than other 125cc cylinders to accommodate the longer stroke). Lastly, compare carefully to my picture and dimensions to be sure this the kit you need.
Specifications:
Cylinder Material: Cast Iron
Overall height: 98mm
Deck Height: 78.5mm (Base gasket to Head gasket)
Piston Height: 37mm
Piston Diameter: 52.4mm
Piston Pin Length: 41mm
Piston Pin Diameter: 13mm
Note: This one is very hard to find... if you find a cheaper one, be very careful, it's probably for a 110cc engine.
